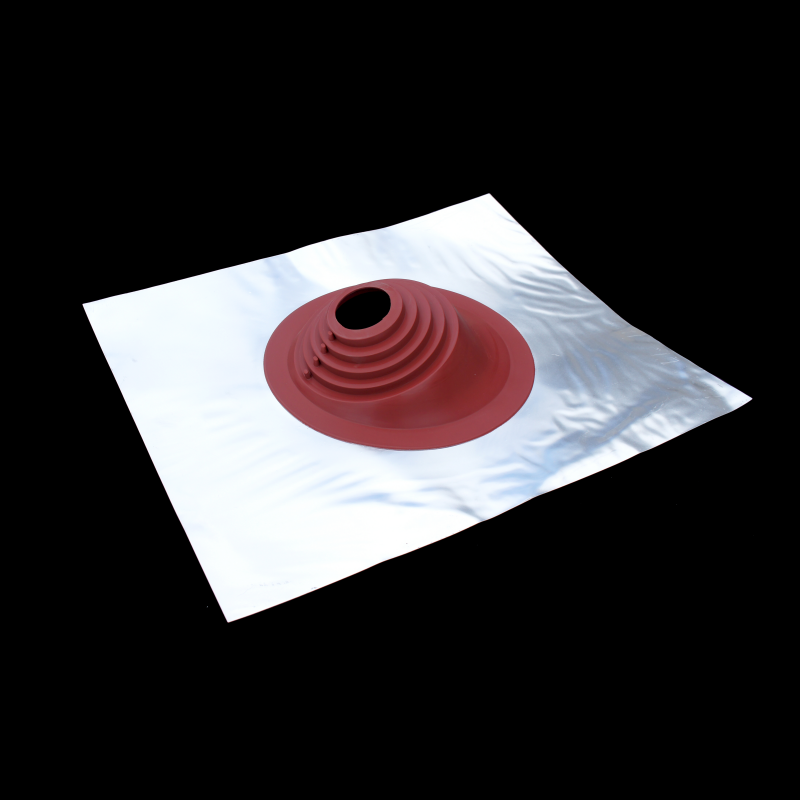

Aluminium Flashing Unit Silicone

This Pitched Silicone Aluminium Roof Flashing Unit measures;
Length: 20 3/4″ / 605mm

Width: 20″ / 510mm

It can be used with pipe sizes ranging from 3″ / 80mm up to 8″ / 200mm in diameter.

It is constructed from aluminium with a wall thickness of 0.6mm and Silicone rubber.

Tested Temperature Ratings as follows;

Intermittent: 260 degrees Centigrade.

Continuous: 225 degrees Centigrade.

If a lower temperature rating is required (perhaps because your roof is quite high or outside wall temperature of your pipe is low) we suggest you purchase a EPDM flashing unit instead.
